GATE ECE 2006 | Question-76

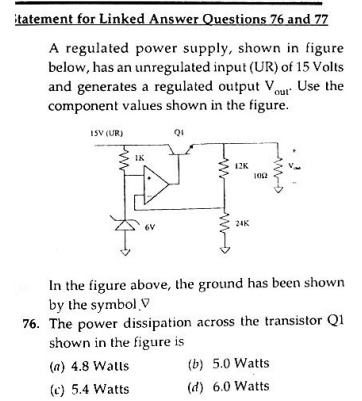

statement for Linked Answer Questions 76 and 77
A regulated power supply, shown in figure below, has an unregulated input (UR) of $15$ Volts and generates a regulated output $V_{\text {out }}$. Use the component values shown in the figure.


In the figure above, the ground has been shown by the symbol $\nabla$

The power dissipation across the transistor $\text{Q1}$ shown in the figure is

  1. $4.8$ Watts
  2. $5.0$ Watts
  3. $5.4$ Watts
  4. $6.0$ Watts
