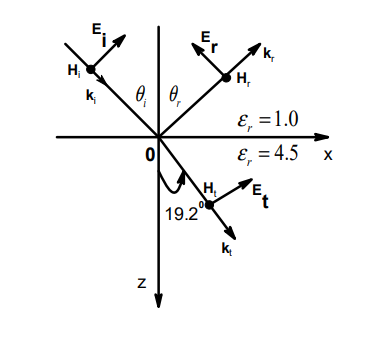

A monochromatic plane wave of wavelength $\lambda = 600 \mu m$ is propagating in the direction as shown in the figure below. $\vec{E_{i}},\vec{E_{r}},$ and $\vec{E_{t}}$ denote incident, reflected, and transmitted electric field vectors associated with the wave.

The angle of incidence $\theta_{i}$ and the expression for $\vec{E_{i}}$ are

  1. $60^{\circ}$ and $\frac{E_{0}}{\sqrt{2}}(\hat{a_{x}} - \hat{a_{z}})e^{-j \frac{\pi\times 10^{4}(x+z)}{3\sqrt{2}}} \:V / m$
  2. $45^{\circ}$ and $\frac{E_{0}}{\sqrt{2}}(\hat{a_{x}} + \hat{a_{z}})e^{-j \frac{\pi\times 10^{4}z}{3}} \:V / m$
  3. $45^{\circ}$ and $\frac{E_{0}}{\sqrt{2}}(\hat{a_{x}} - \hat{a_{z}})e^{-j \frac{\pi\times 10^{4}(x+z)}{3\sqrt{2}}} \:V / m$
  4. $60^{\circ}$ and $\frac{E_{0}}{\sqrt{2}}(\hat{a_{x}} - \hat{a_{z}})e^{-j \frac{\pi\times 10^{4}z}{3}} \:V / m$
in Others by (15.7k points)
retagged by

Please log in or register to answer this question.
