GATE ECE 2011 | Question: 46

• recategorized by
328 views
1 1 vote

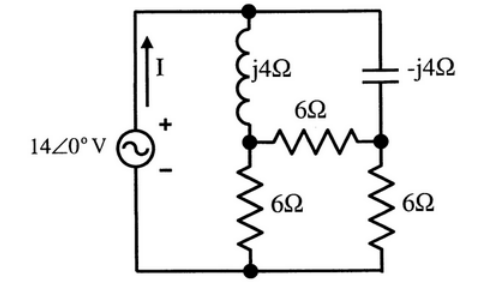

In the circuit shown below, the current $\text{I}$ is equal to

  1. $1.4 \angle 0^{\circ} \; \mathrm{A}$
  2. $2.0 \angle 0^{\circ} \; \mathrm{A}$
  3. $2.8 \angle 0^{\circ} \; \mathrm{A}$
  4. $3.2 \angle 0^{\circ} \; \mathrm{A}$

Please log in or register to answer this question.
