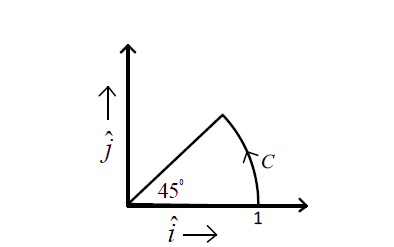

The vector function $F\left ( r \right )=-x\hat{i}+y\hat{j}$ is defined over a circular arc $C$ shown in the figure.

The line integral of $\int _{C} F\left ( r \right ).dr$ is

  1. $\frac{1}{2}$
  2. $\frac{1}{4}$
  3. $\frac{1}{6}$
  4. $\frac{1}{3}$
in Vector Analysis recategorized by
by
5.9k points
347 views

1 Answer

1 vote
1 vote
Best answer
$ \nabla \times F =   \begin{vmatrix}\mathbf {i} &\mathbf {j} &\mathbf {k} \\{\frac {\partial }{\partial x}}&{\frac {\partial }{\partial y}}&{\frac {\partial }{\partial z}}\\-x & y & 0 \end{vmatrix}  = 0 $

Therefore, it is path independent integral and can be integrated along path y = 0 and x = y also.

For path y = 0, dy = 0

$ \int _{1} ^{0}  (-xdx + 0) = \dfrac{1}{2} $

For path x = y , dx = dy

$\int _{0} ^{\frac{1}{\sqrt{2}}}  (-xdx +xdx ) = 0 $

Add both path integrals to get $\frac{1}{2}$
selected by
670 points
Answer:
