GATE ECE 2009 | Question: 8

• recategorized by
401 views
1 1 vote

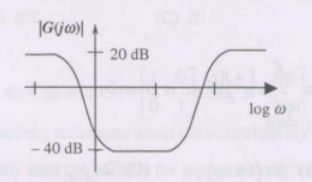

The magnitude plot of a rational transfer function $G(s)$ with real coefficients is shown below. Which of the following compensators hás such a magnitude plot?

  1. Lead compensator
  2. Lag compensator
  3. PID compensator
  4. Lead-lag compensator

Please log in or register to answer this question.
