GATE ECE 2000 | Question 9

• recategorized by
576 views
0 0 votes

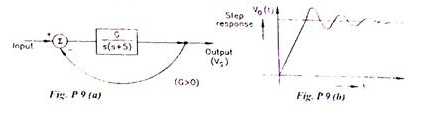

The block diagram of a feedback system is shown in the figure.

  1. Find the closed loop transfer function.
  2. Find the minimum value of $G$ for which the step response of the system would exhibit an overshoot, as shown in figure.
  3. For G equal to twice this minimum value, find the time period $T$ indicated in the figure.

Please log in or register to answer this question.
