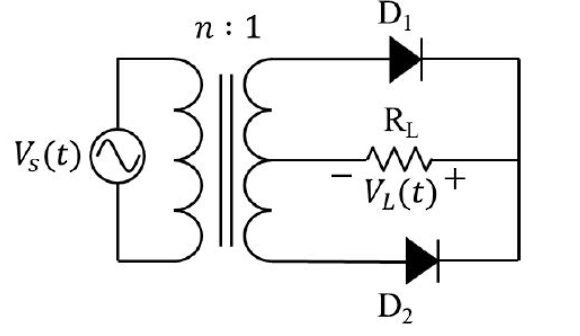

0 0 votes In the circuit shown, the $n: 1$ step-down transformer and the diodes are ideal. The diodes have no voltage drop in forward biased condition. If the input voltage (in Volts) is $V_{s}(t)=10 \sin \omega t$ and the average value of load voltage $V_{L}(t)$ (in Volts) is $2.5 / \pi$, the value of $n$ is $\_\_\_\_\_\_\_$. $4$ $8$ $12$ $16$ Diode Circuits gateece-2024 hilbert-transformer diode-circuits step-down-transformer + – admin 3.8k views answer comment Share Follow Add Sync Questions Print 0 reply Please log in or register to add a comment.
1 1 vote 1 kunalsaner answered Mar 23, 2024 kunalsaner comment Share Follow 0 reply Please log in or register to add a comment.
1 1 vote 4 younote answered Mar 10, 2025 younote comment Share Follow 0 reply Please log in or register to add a comment.
