GATE ECE 2022 | Question: 47

• recategorized by
426 views
0 0 votes

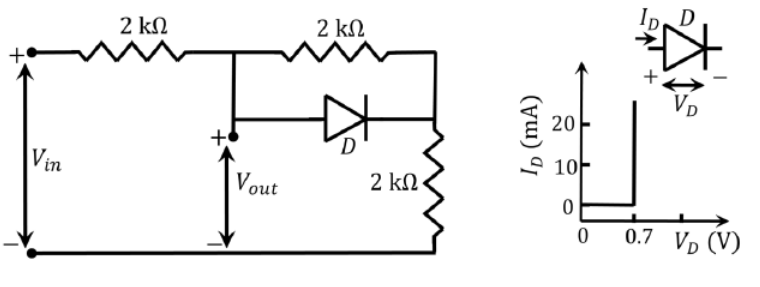

A circuit and the characteristics of the diode $\text{(D)}$ in it are shown. The ratio of the minimum to the maximum small signal voltage gain $\frac{\partial V_{\text{out}}}{\partial V_{\text{in}}}$ is ____________ (rounded off to two decimal places).
