GATE ECE 1991 | Question-46

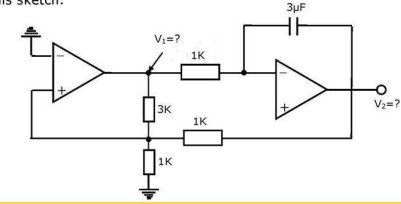

In figure, the operational amplifiers are ideal and their output can swing between $-15$ and $+15$ volts. Sketch on same diagram, the waveform of voltages $V_1$ and $V_2$ as a function of time. You must give the values of important parameters of this sketch.
