GATE ECE 2019 | Question: 10

• recategorized by
601 views
0 0 votes

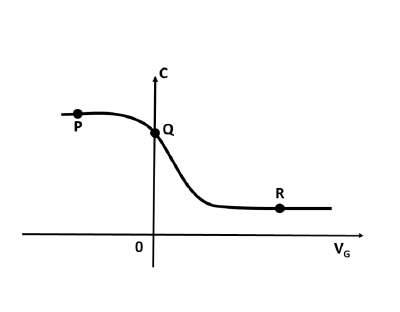

The figure shows the high-frequency C-V curve of a MOS capacitor $(\text{at}\: T=300\: K)$ with $\Phi_{ms}= 0\: V$ and no oxide charges. The flat-band, inversion, and accumulation conditions are represented, respectively, by the points

  1. $P,Q,R$
  2. $Q,R,P$
  3. $R,P,Q$
  4. $Q,P,R$

Please log in or register to answer this question.

Answer:
