0 0 votes

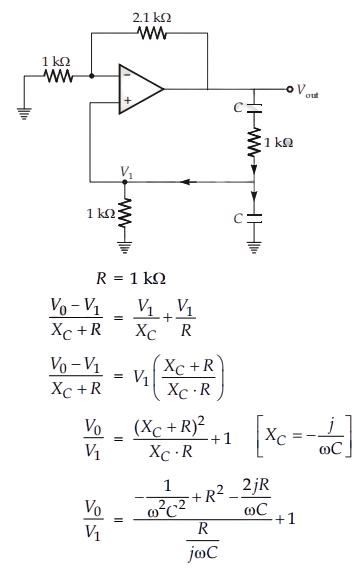

The value of $\mathrm{C}$ required for sinusoidal oscillations of frequency $1 \; \mathrm{kHz}$ in the circuit of given figure is

  1. $\frac{1}{2 \pi} \; \mu \text{F}$
  2. $2 \pi \; \mu \text{F}$
  3. $\frac{1}{2 \pi \sqrt{6}} \; \mu \text{F}$
  4. $2 \pi \sqrt{6} \; \mu \text{F}$

1 Answer

Answer:
Position:
Show:
