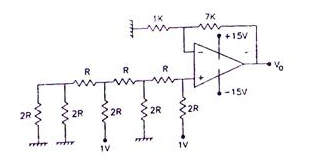

For the $4$ bit $\text{DAC}$ shown, the output voltage $v_{0}$ is

  1. $10 \mathrm{~V}$
  2. $5 \mathrm{~V}$
  3. $4 \mathrm{~V}$
  4. $8 \mathrm{~V}$
edited by

Please log in or register to answer this question.

Answer:
