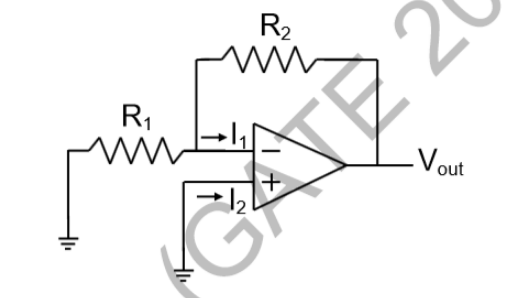

0 0 votes In the circuit shown the op-amp has finite input impedance, infinite voltage gain, and zero input offset voltage. The output voltage $V_{out}$ is $-I_{2}(R_{1} + R_{2})$ $I_{2}R_{2}$ $I_{1}R_{2}$ $-I_{1}(R_{1} + R_{2})$ Analog Circuits gate2014-ec-1 op-amp-circuits analog-circuits electronic-devices + – Milicevic3306 499 views answer comment Share Follow Add Sync Questions Print 0 reply Please log in or register to add a comment.
0 0 votes 0 + Vout / R2 + i1 = 0 (KCL) so C Abhiral_Gupta answered Aug 4 Abhiral_Gupta comment Share Follow 0 reply Please log in or register to add a comment.
