GATE ECE 2014 Set 4 | Question: 6

• recategorized by
463 views
0 0 votes

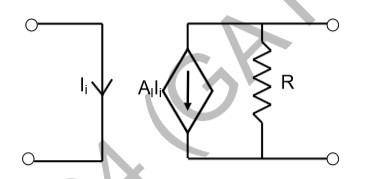

The circuit shown in the figure represents a

  1. voltage controlled voltage source
  2. voltage controlled current source
  3. current controlled current source
  4. current controlled voltage source

Please log in or register to answer this question.

Answer:
