GATE ECE 2008 | Question: 57

• recategorized by
197 views
1 1 vote

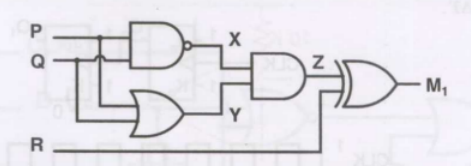

Which of the following Boolean Expressions correctly represents the relation between $\text{P, Q, R}$ and $\mathrm{M}_{1}?$

  1. $\text{M}_{1} = \text{(P OR Q) XOR R}$
  2. $\text{M}_{1} = \text{(P AND Q) XOR R}$
  3. $\text{M}_{1} = \text{(P NOR Q) XOR R}$
  4. $\text{M}_{1} = \text{(P XOR Q) XOR R}$

Please log in or register to answer this question.
