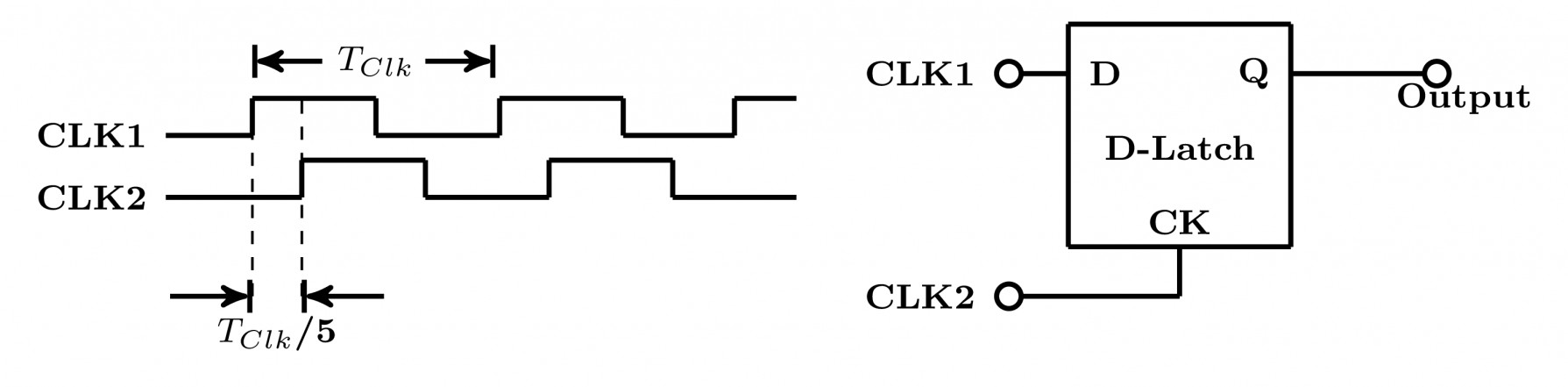

Consider the D-Latch shown in the figure, which is transparent when its clock input $CK$ is high and has zero propagation delay. In the figure , the clock signal $CLK$ has a $50 \%$ duty cycle and $CLK2$ is a one-fifth period delayed version of $CLK1$.The duty cycle at the output of the latch in percentage is _________.
