GATE ECE 2014 Set 3 | Question: 54

• recategorized by
534 views
0 0 votes

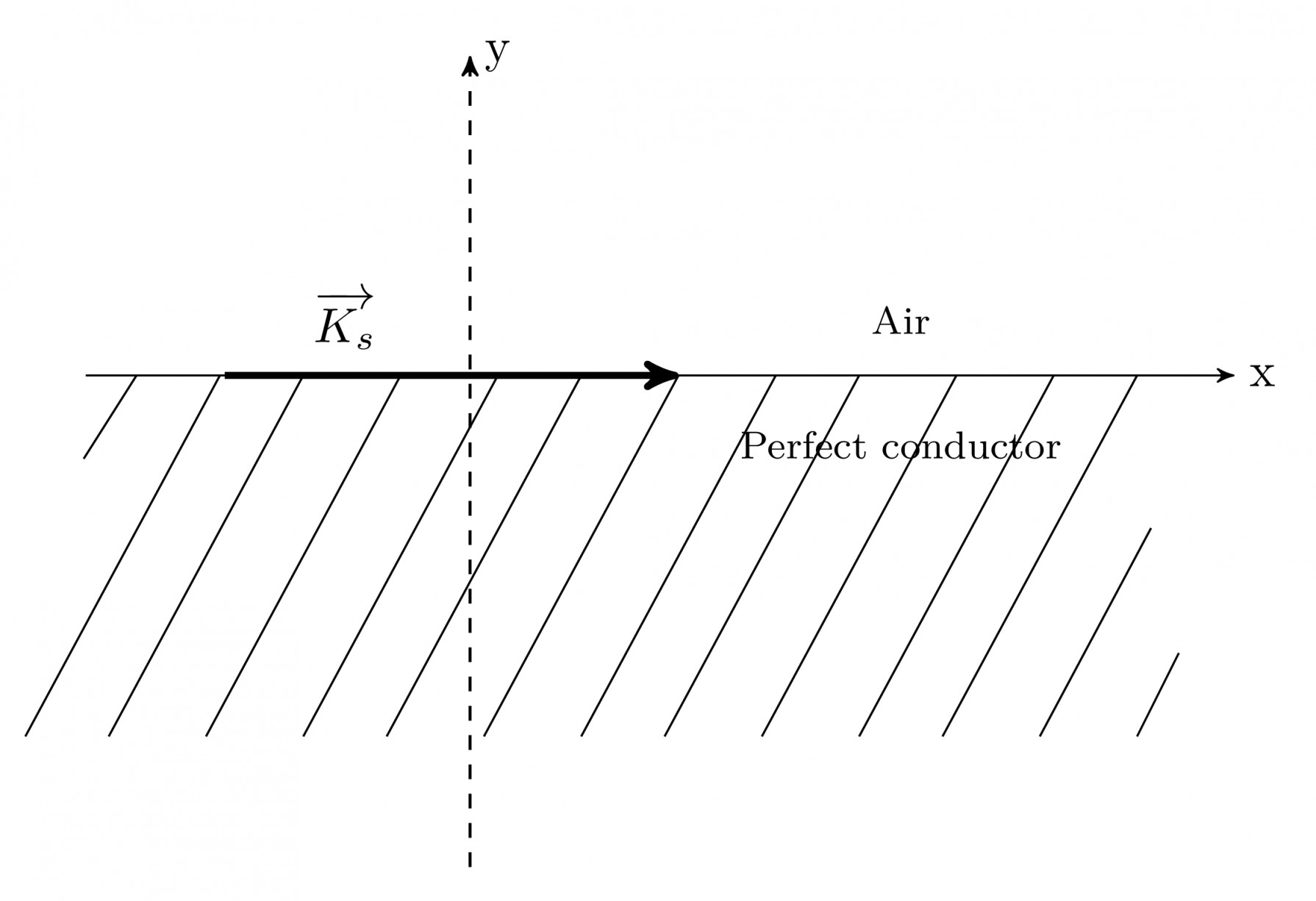

A region shown below contains a perfect conducting half-space and air. The surface current $\overrightarrow{K_{s}}$ on the surface of the perfect conductor is $\overrightarrow{K_{s}}= \hat{x}2$ amperes per meter. The tangential $\overrightarrow{H}$ field in the air just above the perfect conductor is



  1. $( \hat{x} +\hat{z})2$ amperes per meter
  2. $\hat{x}2$ amperes per meter
  3. $-\hat{z}2$ amperes per meter
  4. $\hat{z}2$ amperes per meter

Please log in or register to answer this question.

Answer:
