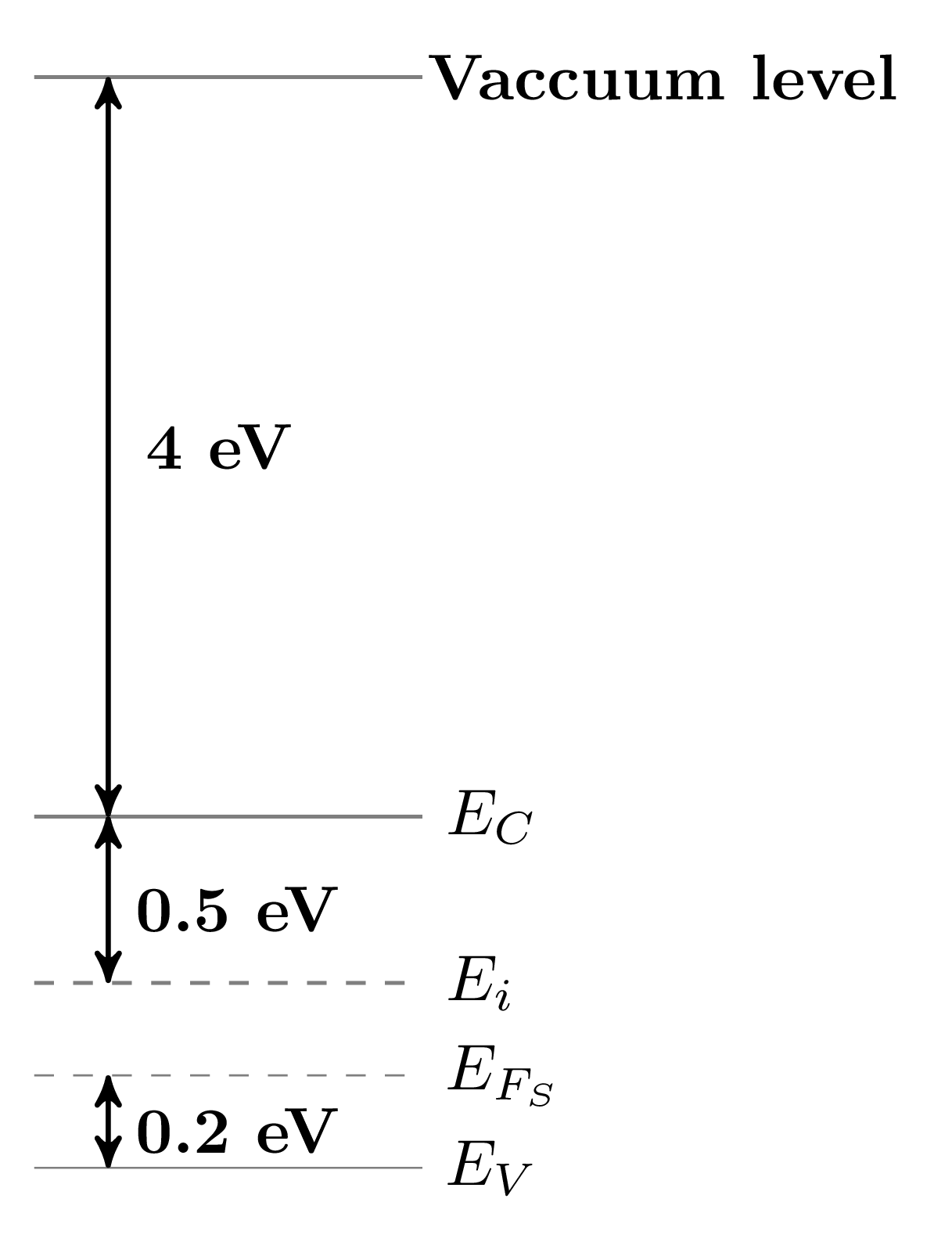

0 0 votes The band diagram of a $p$-type semiconductor with a band-gap of $1$ eV is shown. Using this semiconductor, a $\text{MOS}$ capacitor having $V_{TH}$ of $-0.16 V$, ${C}'_{ox}$ of $100\:nF/cm^{2}$ and a metal work function of $3.87 \: eV$ is fabricated. There is no charge within the oxide. If the voltage across the capacitor is $V_{TH}$, the magnitude of depletion charge per unit area (in $C/cm^{2}$) is $1.70\times 10^{-8}$ $0.52\times 10^{-8}$ $1.41\times 10^{-8}$ $0.93\times 10^{-8}$ Number Representations gate2020-ec digital-circuits semiconductor + – go_editor 552 views answer comment Share Follow Add Sync Questions Print 0 reply Please log in or register to add a comment.
