GATE ECE 2004 | Question: 45

• recategorized by
309 views
0 0 votes

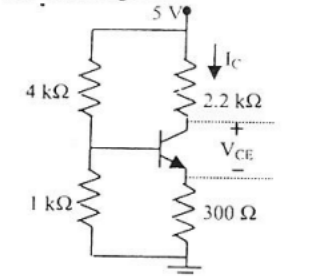

Assuming that the $\beta$ of the transistor is extremely large and $\text{V}_{\text{B E}}=0.7 \mathrm{~V}, \text{I}_{\text{C}}$ and $\text{V}_{\text{CE}}$ in the circuit shown in the figure are

  1. $\mathrm{I}_{\mathrm{C}}=1 \mathrm{~mA}, \mathrm{~V}_{\mathrm{CE}}=4.7 \mathrm{~V}$
  2. $\mathrm{I}_{\mathrm{C}}=0.5 \mathrm{~mA}, \mathrm{~V}_{\mathrm{CE}}=3.75 \mathrm{~V}$
  3. $\mathrm{I}_{\mathrm{C}}=1 \mathrm{~mA}, \mathrm{~V}_{\mathrm{CE}}=2.5 \mathrm{~V}$
  4. $\mathrm{I}_{\mathrm{C}}=0.5 \mathrm{~mA}, \mathrm{~V}_{\mathrm{CE}}=3.9 \mathrm{~V}$

Please log in or register to answer this question.

Answer:
