GATE ECE 2014 Set 1 | Question: 41

• recategorized by
1,269 views
4 4 votes

Consider the Boolean function $F(w,x,y,z) = wy + xy + \overline{w}\:xyz + \overline{w}\:\overline{x}\:y + xz + \overline{x}\:\overline{y}\:\overline{z}.$ Which one of  the following is the complete set of essential prime implicants?

  1. $w,y,xz,\overline{x}\:\overline{z}$
  2. $w,y,xz$
  3. $y, \overline{x}\:\overline{y}\:\overline{z}$
  4. $y,xz,\overline{x}\:\overline{z}$

1 Answer

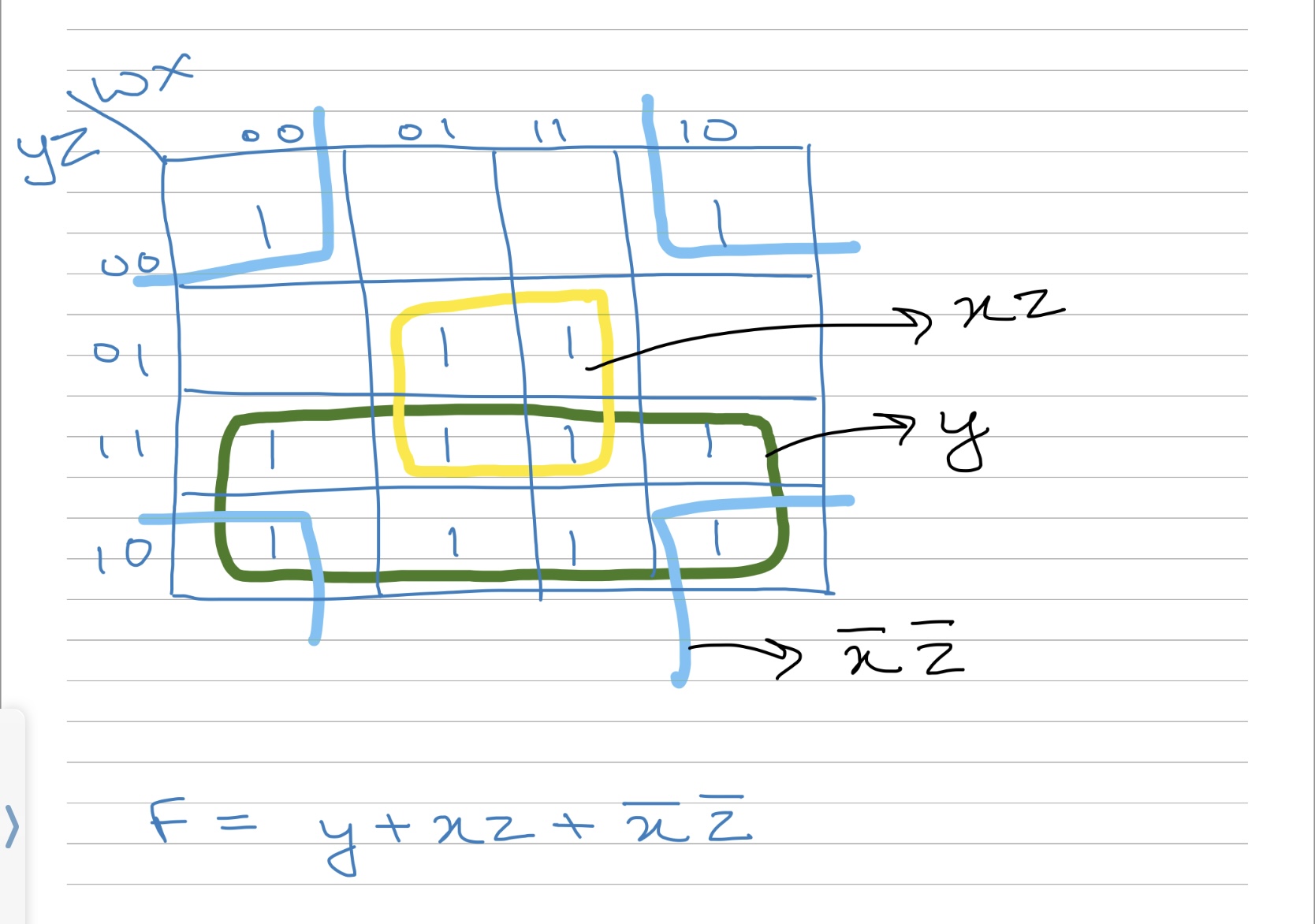

Answer:
